Rack Mount Residential Energy Storage Battery 51.2V 205ah 14.3KWH- 214.5 KWH

Short Description:

The RF-A15 is an upgrade of the RF-A10.

It continues the utility and cost effectiveness of the RF-A10. In everyday use, because the RF-A15 weighs 130 kg, it is usually placed indoors as a stationary home energy storage system. To suit outdoor scenarios, we have also designed easy-to-operate handle internal buckles on both sides of the RF-A15.

The RF-A15 comes in a high-end battery package with an energy capacity of up to 14.3kwh for a single module and up to 214.5kwh in parallel.

The RF-A15 is compatible with 95% of inverters, please consult our customer representative and will provide you with inverter brands we focus on.

Send email to us

Product Detail

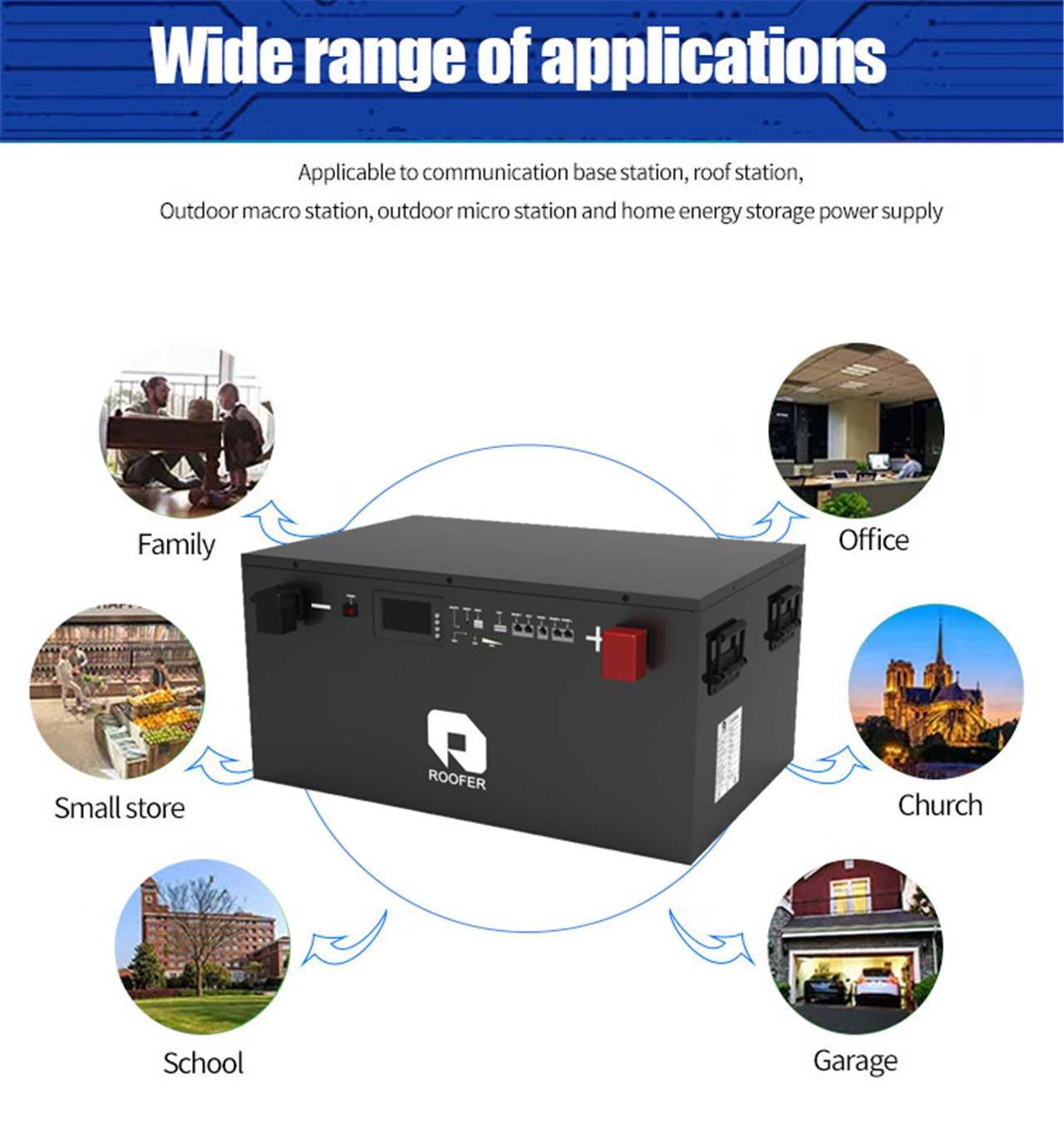

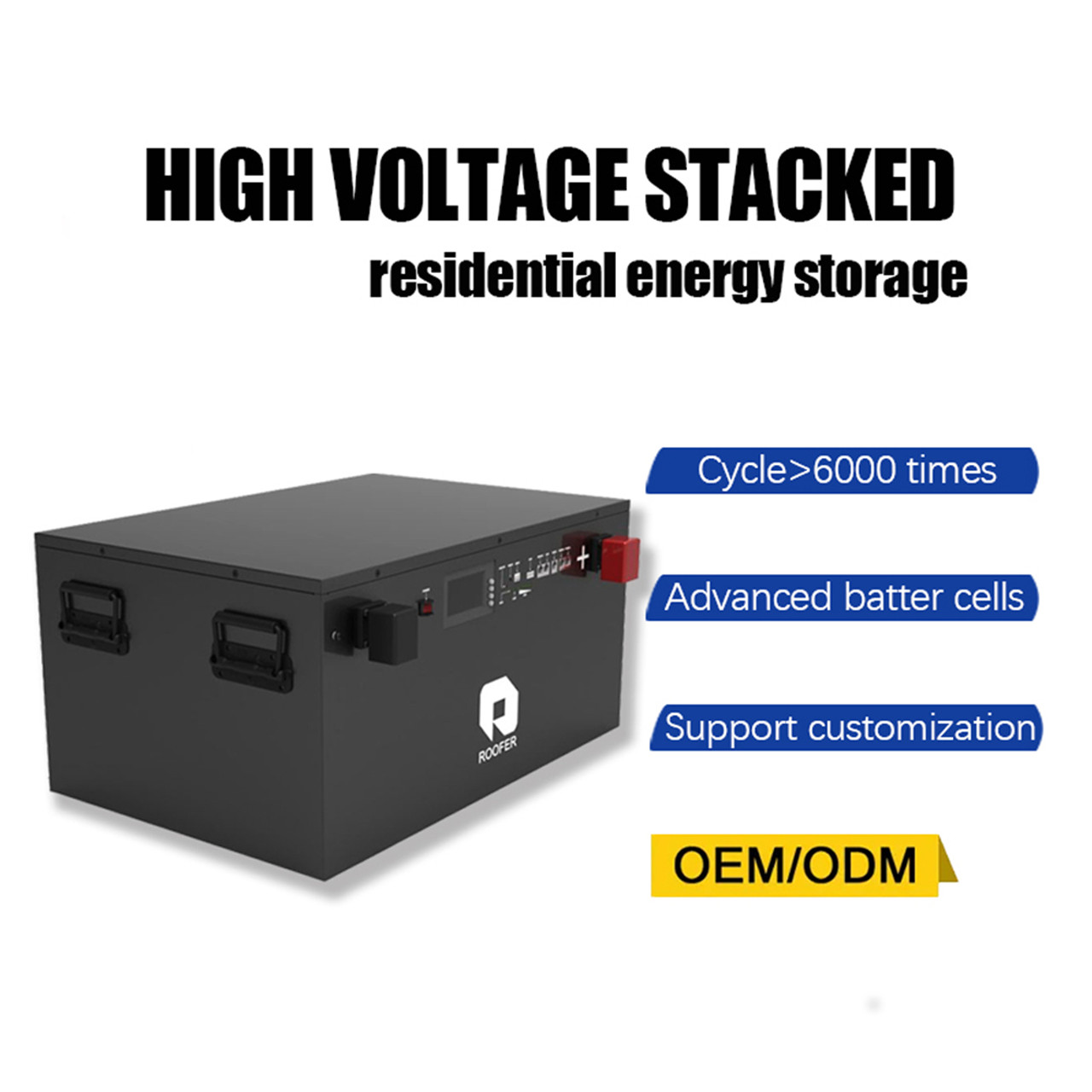

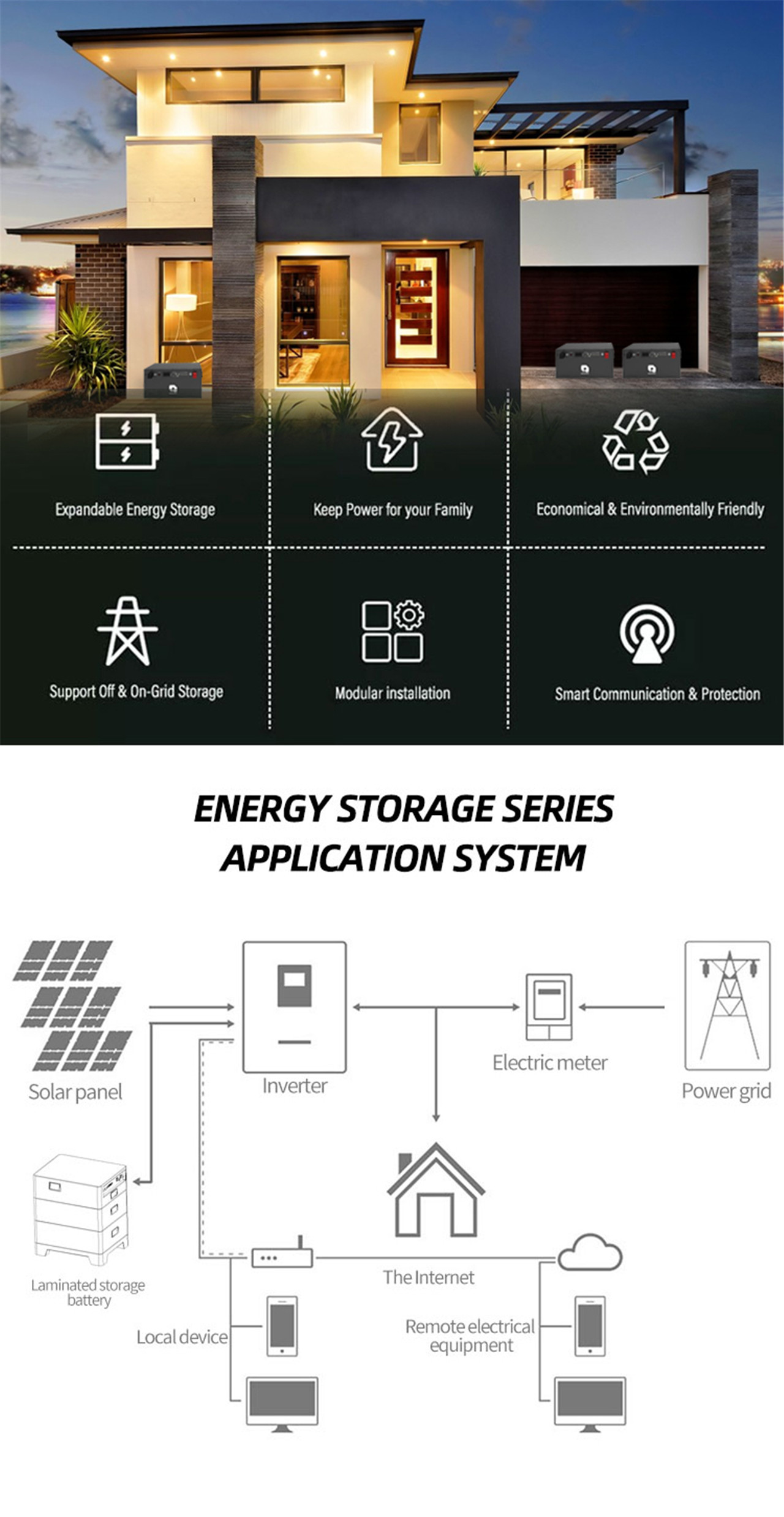

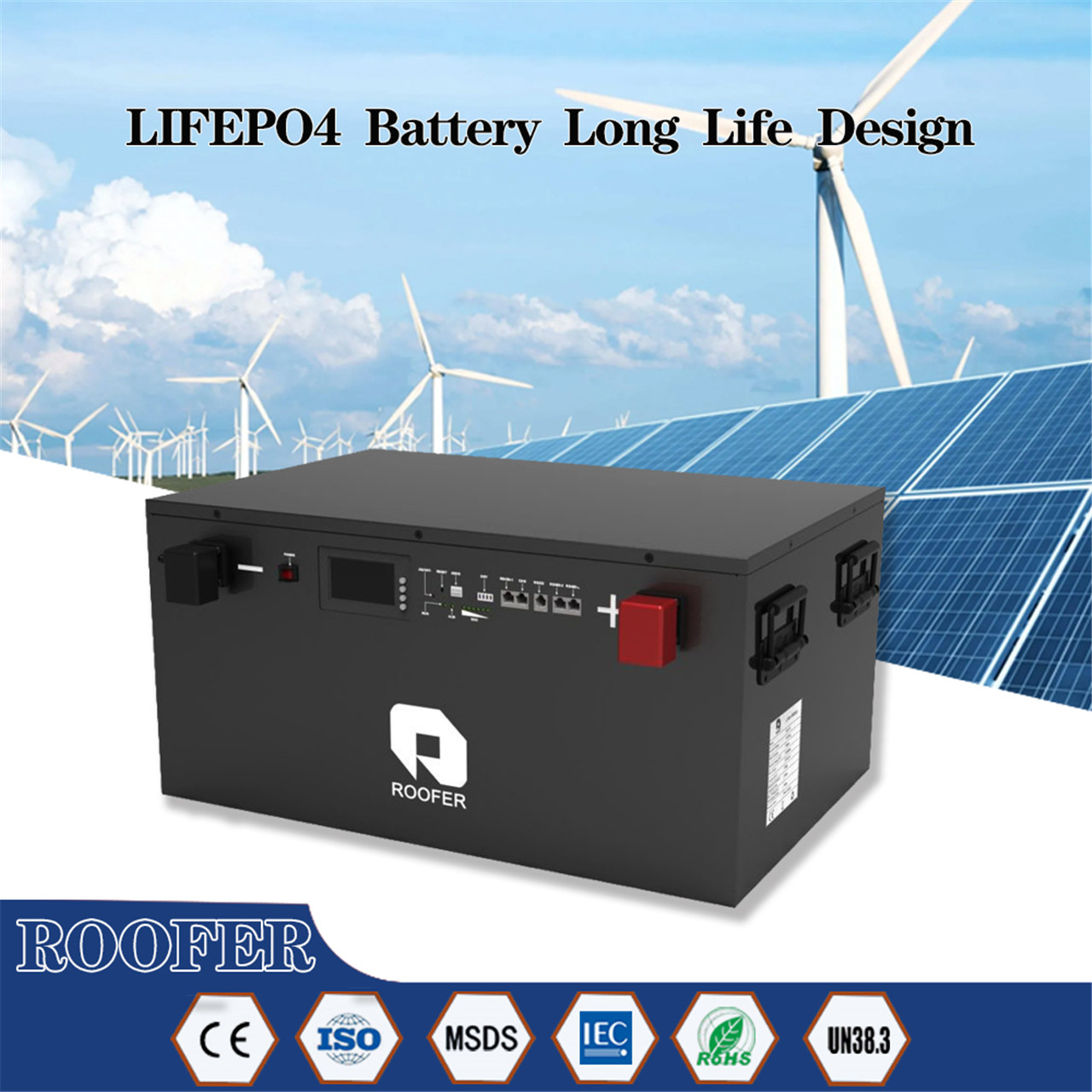

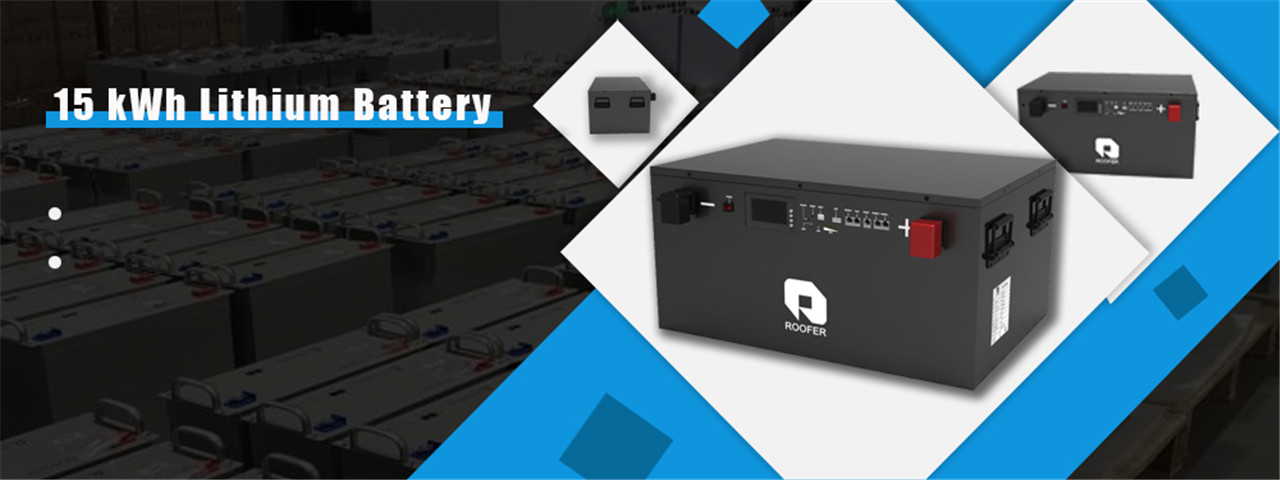

DETAILED DIAGRAM

Product Tags

Product Feature

1.A+Grade battery cell, excellent performance

2.Up to 15 modules can be connected to 214.5Kwh

3.>6000 Cycle Life，Product warranty 5 years, product life more than 10 years

4.LiFePo4 battery is environmentally friendly，safe and durable

Product parameter

5.High-quality battery management system, can ensure the premise of safety to achieve excellent charge and discharge performance.

Key Attributes

Battery Type	LiFePO4
Nominal capacity(Ah)	280ah
Nominal energy(KWh)(25℃)	14336wh
Module specifcation	14.3kwh\|51.2V\|128Kg
Nominal voltage(V)	51.2v
Working Voltage	44.8V-57.6V
Max charge curent(A)	200A
Max discharge curent(A)	200A
Coninuous charging curent(A)	140A
Protection/Security	Overcharge Protection/Undervoltage Protection/Overcurrent Protection
Operating temperature	‘-10~50℃
Discharge eficiency(%)	95%
Cooling mode	Natural Coooling
System Type	Rack-mounted、Floor-mounted
Model Number	RF-A5
Brand Name	Roofer
Place of Origin	Guangdong, China
Communication Port	CAN, RS485,RS232
Protection Class	IP54
Grid connection	Off grid
OEM/ODM	Accepatable
Warranty	5 Years
Cycle Life	＞6000 Cycles @0.5C/0.5C
