Rack-Mounted Residential Energy Storage Battery 48V/51.2V 100ah 5KWH- 78 Kwh

Short Description:

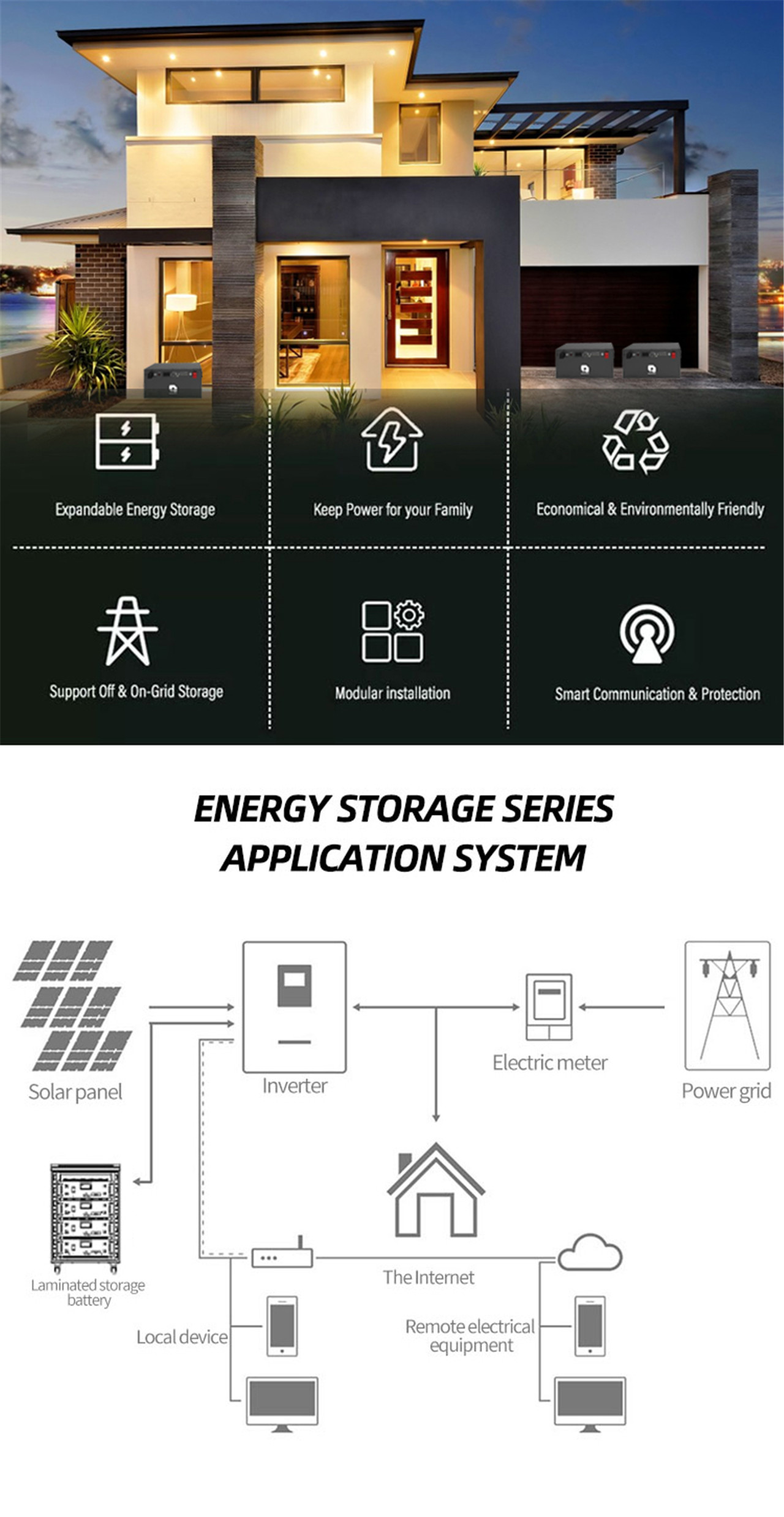

RF-A5 is used for home energy storage system,, we can provide a full set of home energy storage solutions

This product is very easy to install and is usually assembled into a set using our factory custom support accessories, or cabinets. According to your needs, it can be used for different indoor and outdoor scenes.

The energy of a single module of our products is 5kwh, which can be increased up to 76.8kwh according to your needs.

Our products are suitable for most inverters on the market, and our customer representatives will send you detailed installation instructions and matching inverter combinations for your reference.

Our after-sales is up to 5 years, and the product itself has a normal service life of 10-20 years.

Send email to us

Product Detail

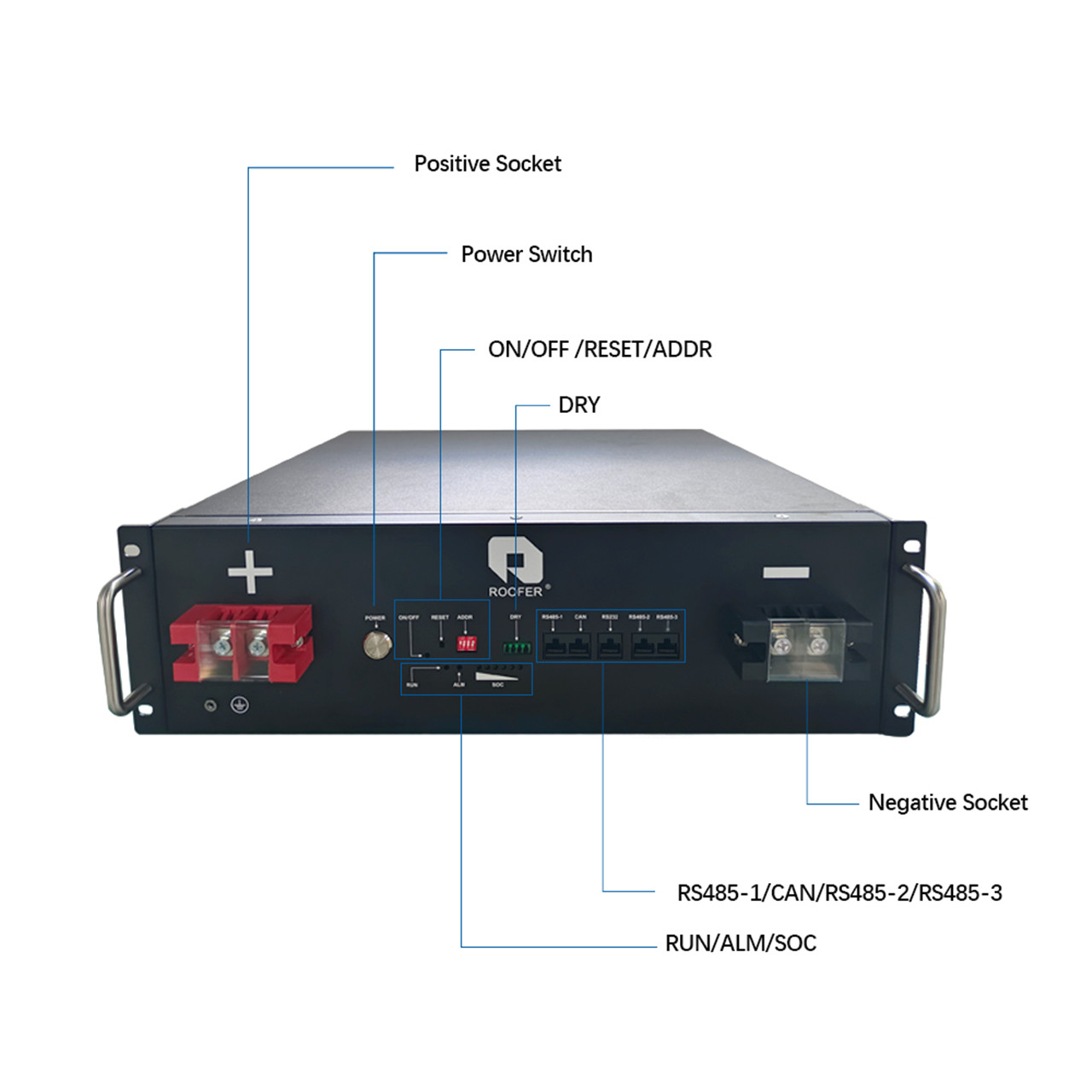

Detailed Diagram

Product Tags

Product Feature

1. Up to 15 modules can be connected to 78 KWH

2. Using high quality cells, we use Eve, Ganfeng and other high-end cells

3. >6000 Cycle Life，Product warranty 5 years, product life more than 10 years

5. A single module corresponding to the 3U network cabinet can be installed, convenient and firm

6. LiFePo4 battery is environmentally friendly，safe and durable

7. High performance BMS system with discharge efficiency up to 95%

Parameter

Battery Type	LiFePO4
Nominal capacity(Ah)	100ah
Nominal energy(KWh)(25℃)	5.12kwh/4.8kwh
Module specifcation	5.12KWh\|51.2V\|48Kg/4.8KWh\|48V\|46Kg
Nominal voltage(V)	51.2v/48V
Working Voltage	46.4V-58.4V
Max discharge curent(A)	100
Coninuous charging curent(A)	50
Protection/Security	Overcharge Protection/Undervoltage Protection/Overcurrent Protection
Operating temperature	‘-10~50℃
Discharge eficiency(%)	95%
Cooling mode	Natural Coooling
System Type	Rack-mounted、Wall-mounted
Model Number	RF-A5
Brand Name	Roofer
Place of Origin	Guangdong, China
Communication Port	CAN, RS485,RS232
Protection Class	IP54
Grid connection	Off grid
Accepatable	OEM/ODM,Trade,Wholesale,Regional Agency
Warranty	5 Years
Cycle Life	＞6000 Cycles @0.5C/0.5C
Certification	UN38.3, MSDS,CE,UL
Packaging and delivery
Package Type:	1.paper box inside , paper box outside2.Custom packaging
Mode of transport	Air/sea/rail transportation
Weight	48KG/46KG
Single Module Dimension (LWH)	430440134
MOQ	1/piece
