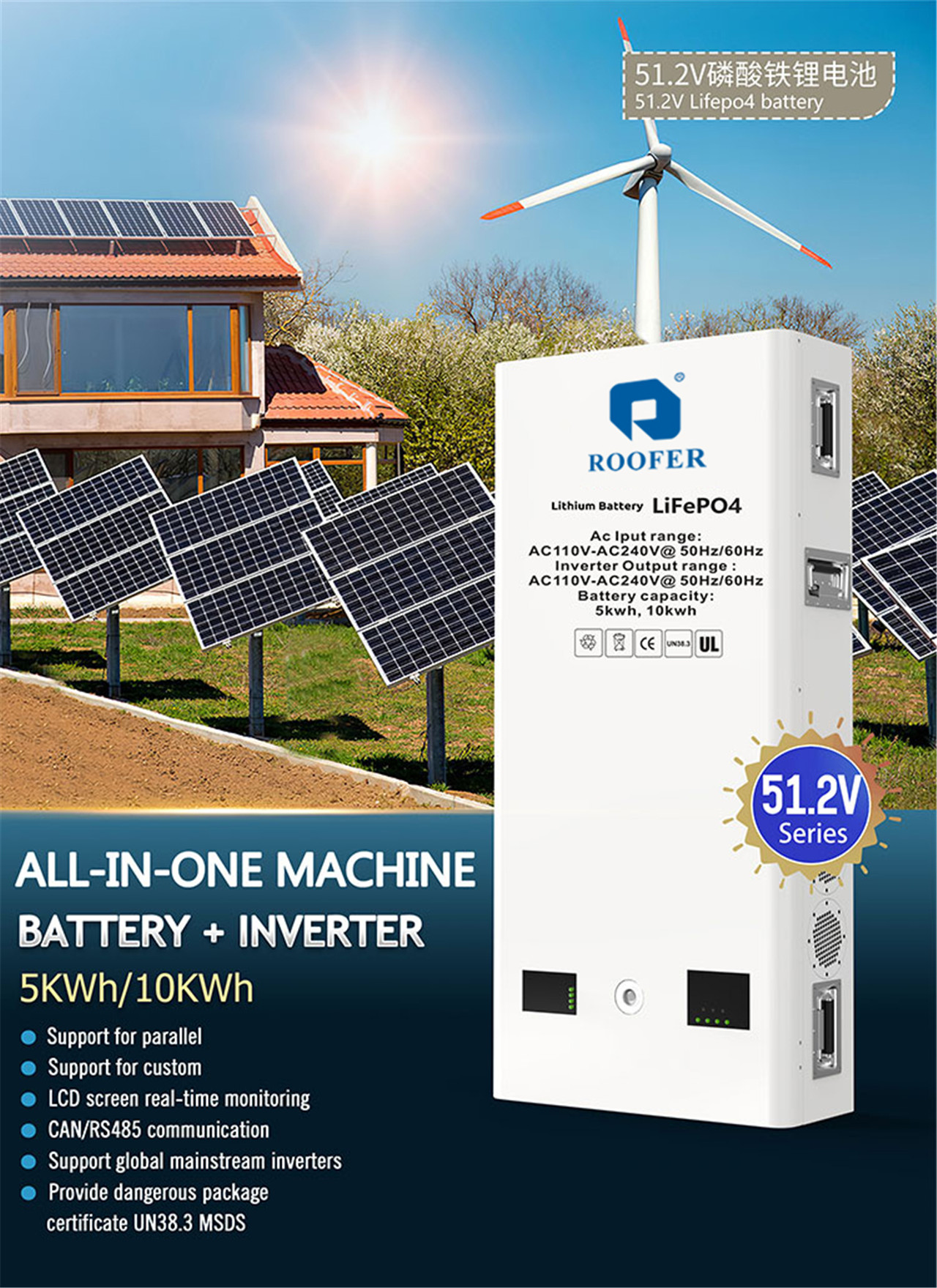

RF-C5 All In One Wall Mount Residential Energy Storage Battery 48V/51.2V 100ah/200ah

Short Description:

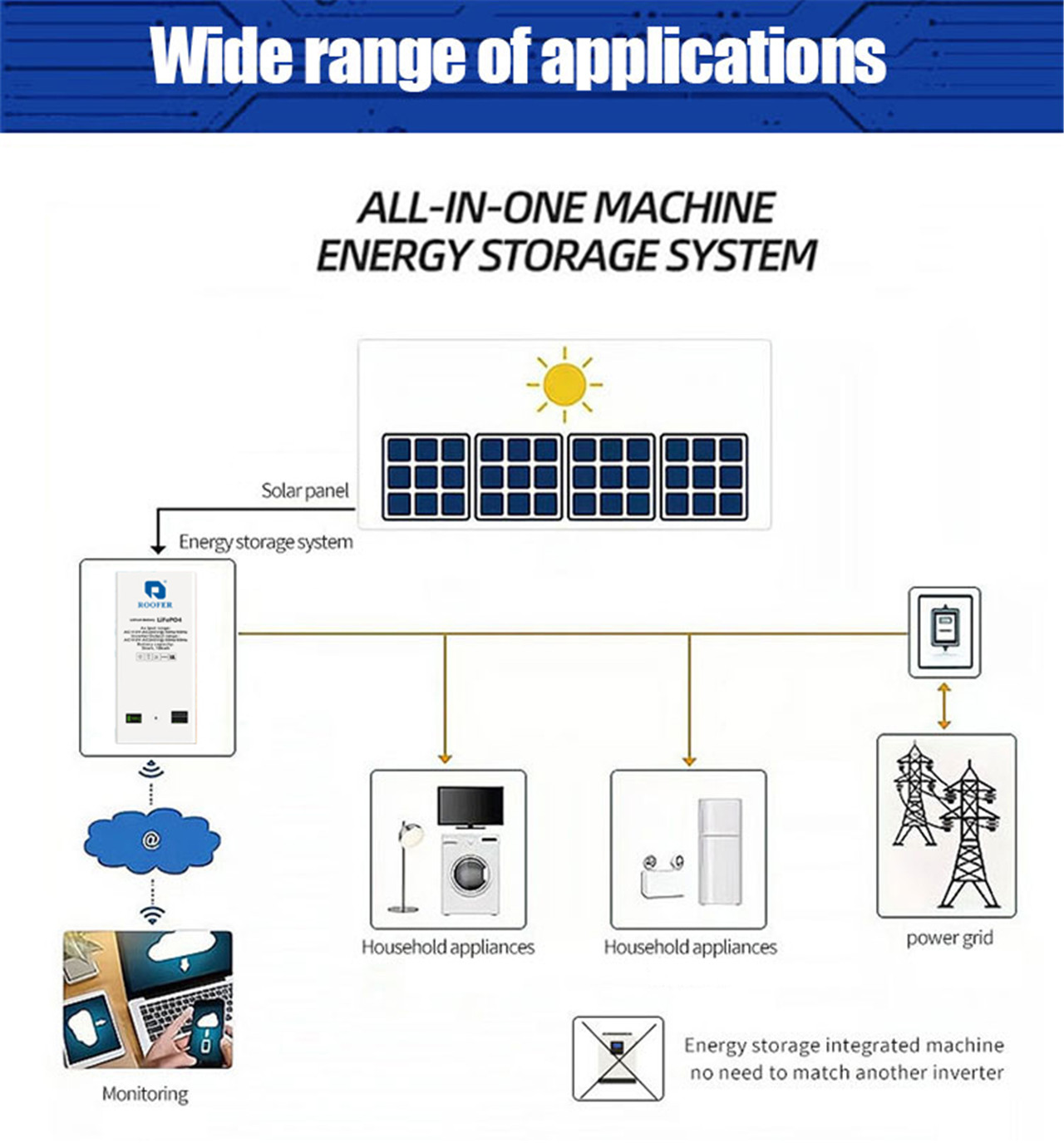

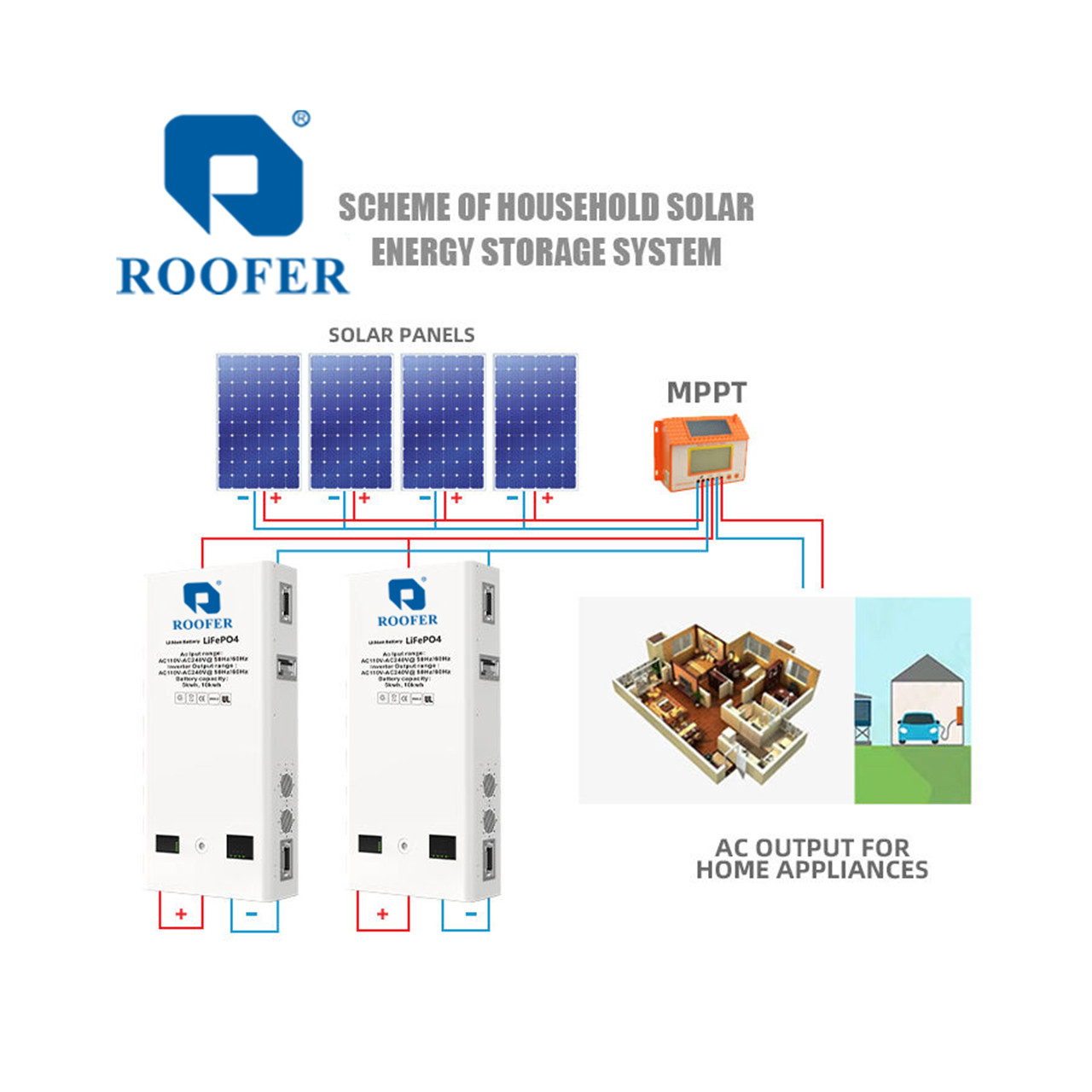

Roofer RF-C5 Series is an integrated product of energy storage system combined with inverter. The RF-C5 can be directly connected with the solar power generation system to realize the storage of electrical energy and the output of electrical energy for electrical appliances.

The design of the RF-C5 saves home space and simplifies the installation steps of the overall home energy storage system.

Empower your home with more power and higher efficiency.

The RF-C5′s warranty period is five years and its actual service life is more than 10 years.

RF-C5 can realize remote monitoring of the energy storage system by connecting to Wifi, and the pure sine wave current output can ensure that RF-C5 can release power safely and efficiently.

Send email to us

Product Detail

DETAILED DIAGRAM

Product Tags

Product Feature

1. The RF-C5 is available in four specifications:

100ah:48V/51.2V 200ah:48V/51.2V

2. Built-in inverter, no need to add an external inverter

3. AAA quality （Eve/CATL/SVOLT/Ganfeng） battery cell, excellent performance

4. >6000 Cycle Life，Product warranty 5 years, Product life up to 10-20 years

5. The product can be used in extreme weather with the option of adding heating function

6. LiFePo4 battery is environmentally friendly，safe and durable

7. Safe and reliable battery management system ensures efficient and stable operation of RF-C5

Parameter

	51.2V 200AH	48V 200AH	51.2V 100AH	51.2V 200AH
Nominal Voltage	48V	48V	51.2V	51.2V
Nominal Capacity	100Ah	200Ah	100Ah	200Ah
Nominal Capacity	4.8KWh	9.6KWh	5.12KWh	10.24kwh
Charge Voltage	54V	54V	57.6V	57.6V
Charging Mode	Constant Current / Constant Voltage
Discharge Cut-off Voltage	43.5V	43.5V	46.4V	46.4V
Max Discharge Current	100A
Charge Temperature	0℃ to 45℃
Discharge Temperature	-20℃ to 55℃
Storage Temperature	0℃ to 40℃
Cycle Life	≥6000 Cycles @0.3C/0.3C
Commnication Port	RS485
Shell Material	Sheet metal chassis
Protection Class	IP21
Certificate	UN38.3/MSDS
