SOLAR INVERTER GD SERIES E1200W~2400W

Short Description:

AC input: 90-280VAC, 50/60Hz

Inverter output: 220~240VAC±5%

Maximum AC charging current: 60A/80A

PV controller: MPPT, 12V/60A, 24V/100A

PV input voltage range: 40-450VDC

Maximum PV array power: 2000W/3000W

Load peak ratio: (MAX) 2:1

Lithium battery self-start: No

Lithium battery communication: Yes

Send email to us

Product Detail

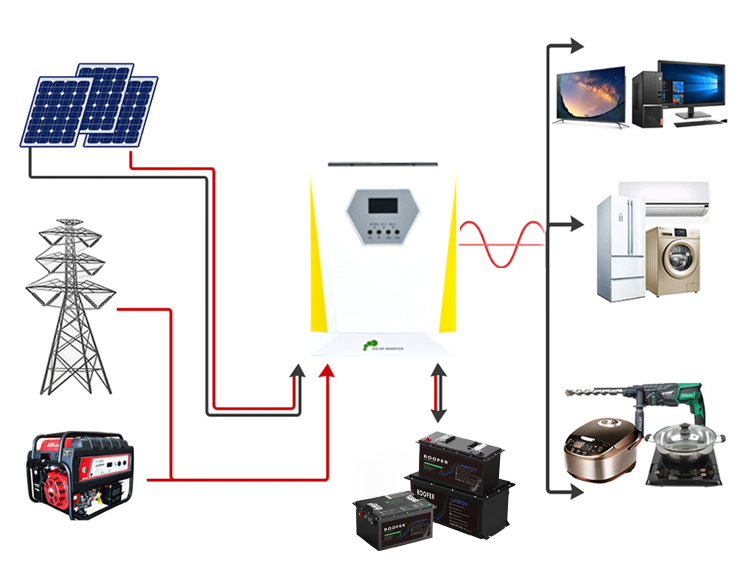

Detailed Diagram

Product Tags

Product Feature

1.Low no-load loss, lower than high-frequency machines with the same power rate

2.Pure sine wave output, suitable for different loads

3.Multiple parameters can be adjusted according to user needs

4.Slim Body, Convenient installation And Transportation

5.Battery Reverse Connection Protection with Fuse Switch, Safer Installation

6.Optional solar controller with MPPT

7.High Precision of Output Voltage,Take Care of Your Appliances

8.External WlFl / BMS function for lithium battery

Parameter

Model		GD2012EMH	GD3024EMH
AC input voltage	AC Input	220VAC(standard)/110VAC(customize)
	Input Voltage Range	90-280VAC±3V(Normal Mode)170-280VAC±3V (UPS Mode)
	input Frequency	50/60Hz±5%
Output	Rated Power	1600W	3000W
	Output Voltage	The output voltage under mains power is the same as the input voltage
	Output Frequency	Tho output froquency under mains power is the sameas the input frequency
	Output Voltago	220VAC±10%(110VAC±10%)
	Output Frequency	50HZ OR 60HZ±1%
	Output Wave	Pure Sine Wave
Battery	Battery Type	External leod-acid battery.Gel battery,water battery or Lithlum battery
	Ratod Voltage	12VDC	24VDC
	Constant Charging Voltage(Adjustable)	14.1VDC	28.2VDC
Charger	Maximum Photovoltaic Array Powor	2000W	3000W
	(MPPT)PV Input Voltage Range	40V-450VDC	40V-500VDC
	MAX PV Input Voltage	400VDC	500VDC
	Best VMP Working Range	300-400VDC	300-400VDC
	MAXPV Charge Curren	60A	100A
	MAX AC Charge Current	60A	60A
	TransferTime	≤10ms(UPS modle)/≤20ms(INV modle)
	Overload Ability	Battery Mode:21s@105%-150%Lood 11s@150g-200%Logg 400ms@>200%Load
Protect	AC	Input overcurrent without fuse switchprotection
	Inversion	overlood,short clrcult,low voltage.battery reverse connection protection(fuse)
Display	Display Screen	Color segment code screen
	Fipping Pages	Can display operating mode/load/input/output
	LED	LED lights display mains power,charging status,inverter status,and fault status
Amblent Temperoture	Operating Temperature	-10°℃~50℃
	storage Temperature	10°℃-60℃
	Sound On	The alarm sound of the buzzer varies depending on the fault code
	Operating Environment Humidity	20%~90% Non Condensing
	Noise	≤50dB
Dimension LWH(mm)		345254105mm
