SOLAR INVERTER UD SERIES 800W~10000W

Short Description:

AC input: 154-264VAC/77-132VAC±3V, 50/60Hz

Inverter output: 220VAC±10%

Maximum mains charging current: 19A

PV controller: PWM, 12V/60A

PV input voltage range: 15-150VDC

Maximum PV array power: 800W

Load peak ratio: (MAX) 3:1

Lithium battery self-start: Mains

Lithium battery communication: None


Product Detail

Detailed Diagram

Product Tags

Product Feature

1.Pure Sine wWave Output

2.Can Support WIFI /GPRS

3.MPPT Efficiency Max 98%

4.BMS Function For Lithium Battery

5.DC Start & Automatic Self-Diagnostic Fuction

6.High efficiency design for optimized battery performance

7.Selectable Charging Current Based On Applications

8.AC Start-Up Voltage Auto Restart Voltage

9.Lead Acid Battery /Lithium Battery

Parameter

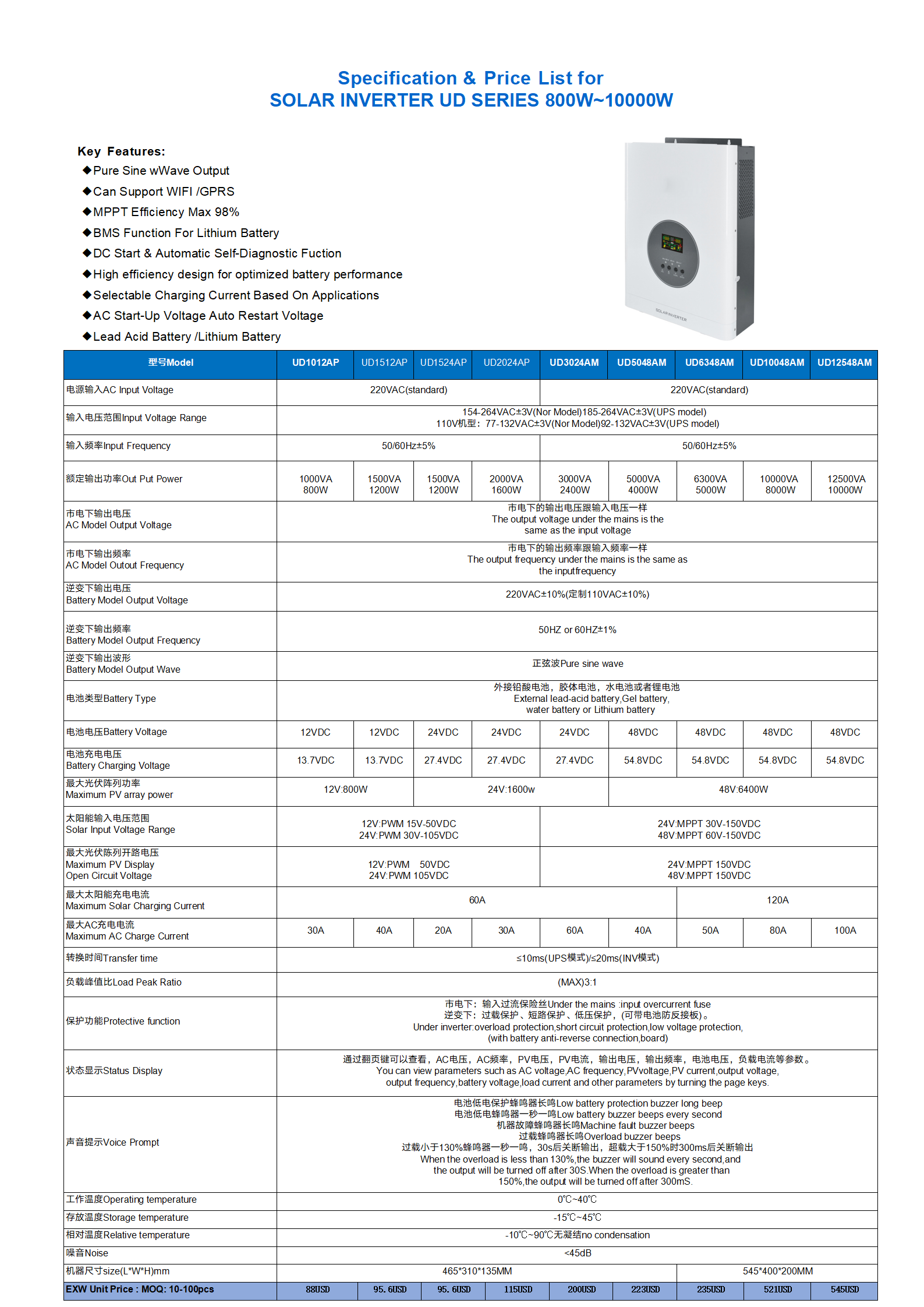

Roofer-A  series Inverter 1.1_04

UD Medium Chassis 2
UD Medium ChassisUD mid chassis front
UD small chassis side2

  • Previous:
  • Next:

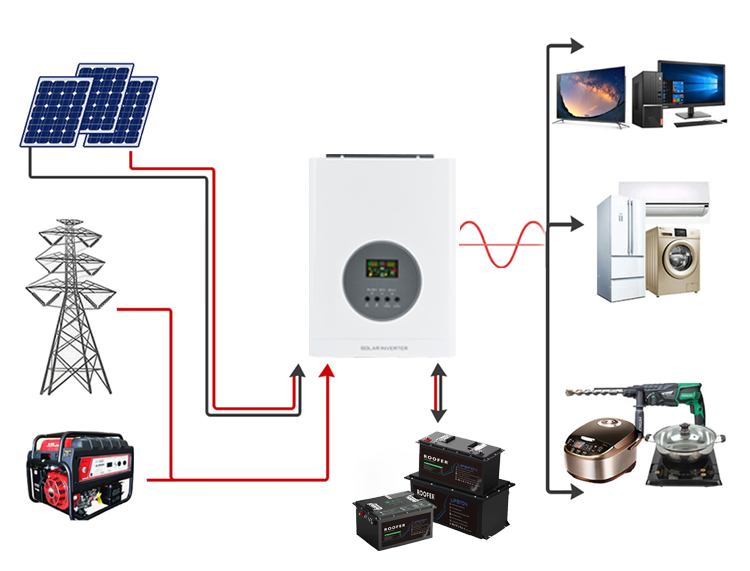

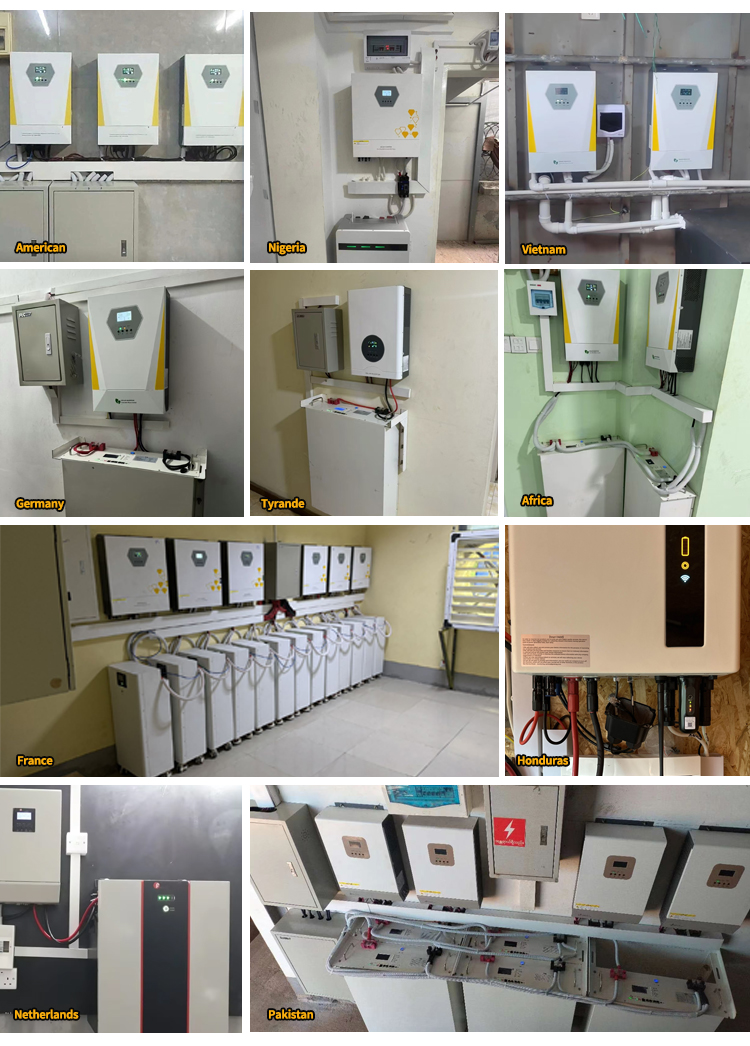

  • UD Marketing Home PageInverter CollectionUD Schematic Inverter installation case
