Stackable Residential Energy Storage Battery 48V/51.2V 100ah/200ah

Short Description:

The RF-B5 has a considerable design aesthetic and can be seamlessly stacked. As an energy storage system, it is suitable for a variety of residential decoration styles.

RF-B5 Series provides an all-in-one modular design, seamless installation, flexible expansion, and outdoor compatibility.

Upgrade your home energy storage solution. Roofer RF-B5 Series features a compact and integrated design, easy installation, smart control, and safety protections for a sustainable future.

With a maximum efficiency of 98%, the RF-B5 Series produces almost no noise, operates at a volume of less than 35db and supports a stack of six units up to 30kwh.

Send email to us

Product Detail

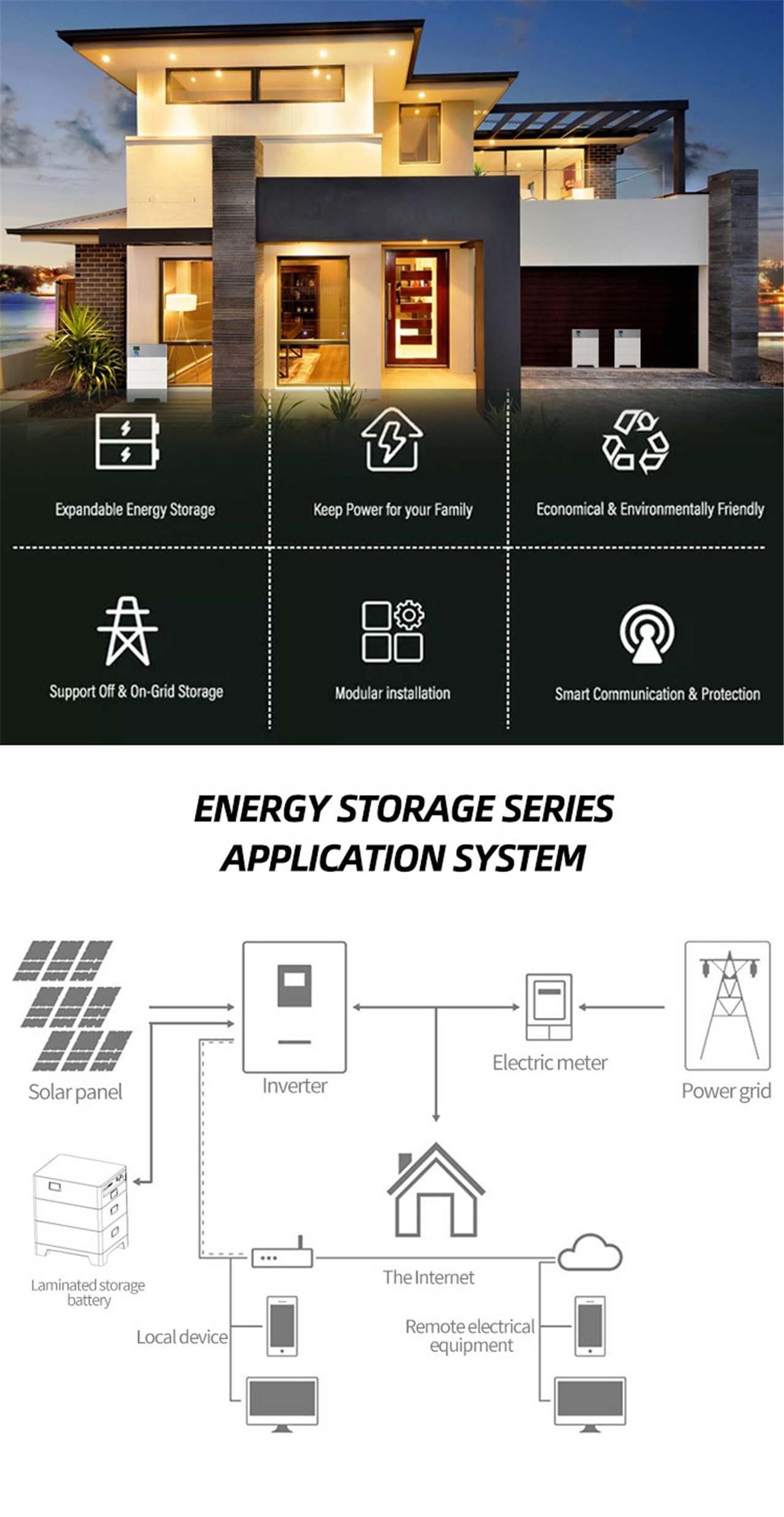

DETAILED DIAGRAM

Product Tags

Product Feature

1. This product can be stacked from 5 KWH to 40 KWH

2. Built-in inverter, no need to add an external inverter

3. AAA quality Eve battery cell, excellent performance

4. >6000 Cycle Life，Product warranty 5 years, product life more than 10 years

5. The product can be used in extreme weather with the option of adding heating function

6. LiFePo4 battery is environmentally friendly，safe and durable

7. Intelligent Battery Management System(BMS) is the best system on the market One can improve battery safety

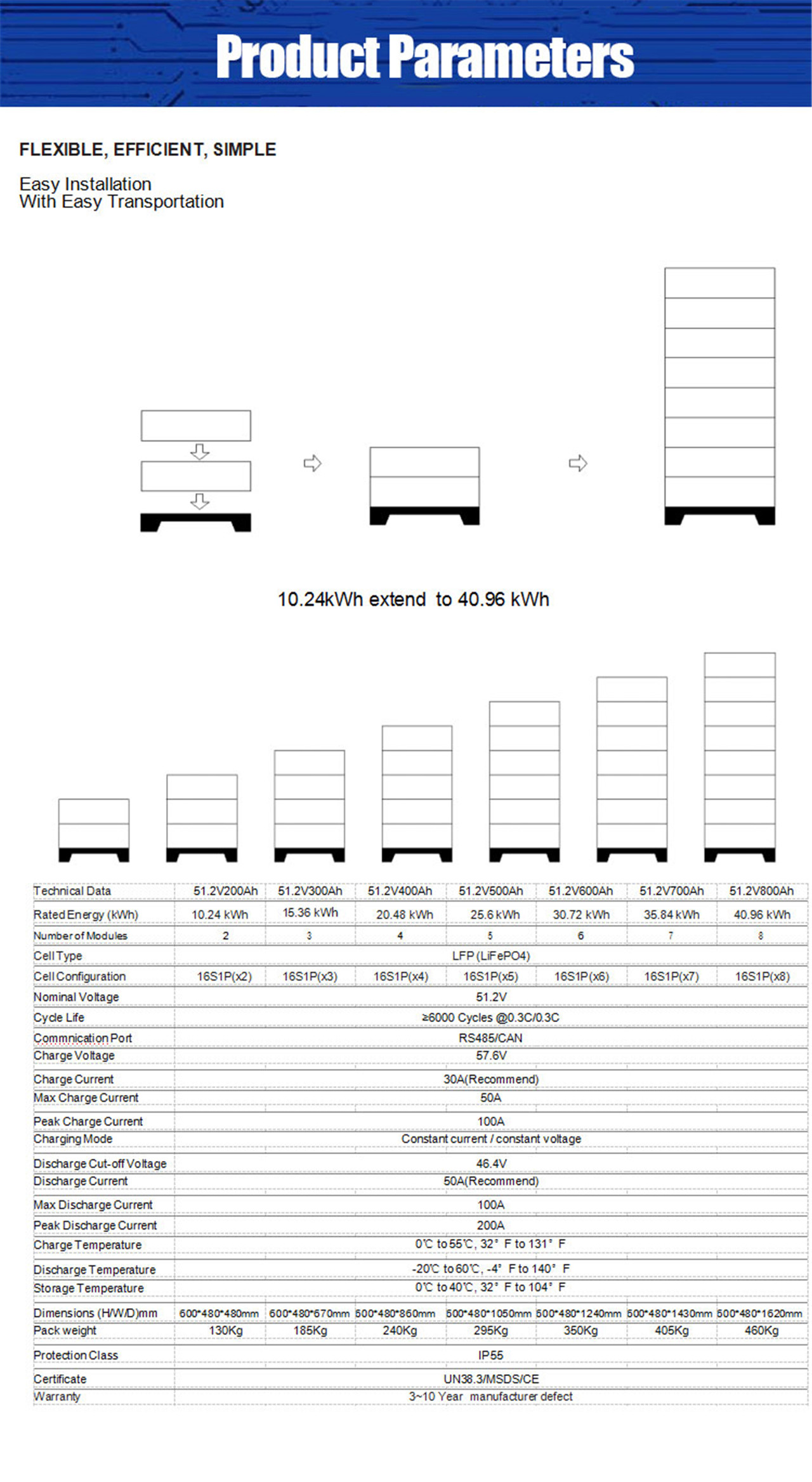

Parameter

	51.2V400Ah	51.2V500Ah	51.2V600Ah	51.2V700Ah	51.2V800Ah
Nominal Voltage	51.2V
Nominal Capacity	400Ah	500Ah	600Ah	700Ah	800Ah
Nominal Capacity	20.48kwh	25.6kwh	30.72kwh	35.84kwh	40.96kwh
Cycle Life	≥6000 Cycles @0.3C/0.3C
Serial Number	16S1P(*4)	16S1P(*5)	16S1P(*6)	16S1P(*7)	16S1P(*8)
Charge Voltage	57.6V	57.6V	57.6V	57.6V	57.6V
Charge Current	30A（Recommended）
Max Charge Current	30A
Charging Mode	Constant Current / Constant Voltage
Discharge Cut-off Voltage	46.4V
Discharge Current	50A（Recommended）
Max Discharge Current	100A
Battery Size(mm)	600480860	6004801050	6004801240	6004801430	6004801620
Pack Weight	240kg	295kg	350kg	405kg	460kg
Protection Class	IP55
Charge Temperature	0℃ to 55℃
Discharge Temperature	-20℃ to 60℃
Storage Temperature	0℃ to 40℃
Certificate	UN38.3/MSDS/CE

Our company has rich research and development and manufacturing experience, product shelf life of five years, you can contact our after-sales team at any time.

Our product performance in the industry belongs to the advanced level, we can also customize products according to your needs.

We focus on controlling costs, improving cost performance, and achieving a win-win situation with customers with appropriate profits.
