Wall Mount Residential Energy Storage Battery 48V |51.2V|10.24KWh

Short Description:

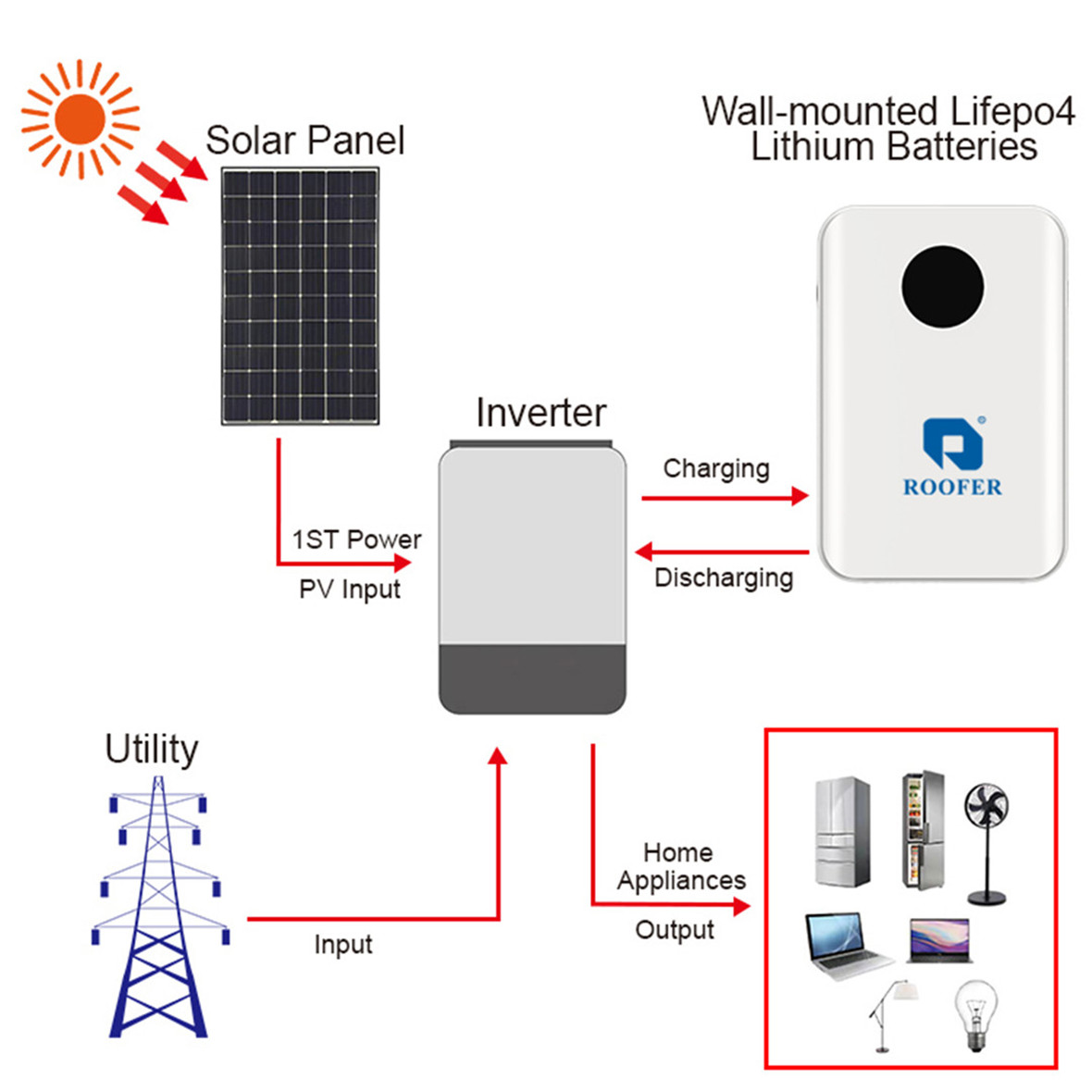

This product is mainly used for the storage of electricity in the home energy system. Can provide you with a complete set of home energy system construction.

This product is very easy to install and can be installed on the walls inside and outside the home according to our instructions, without taking up space in the home.

This product can reach up to 153.6kwh of electricity in parallel, which meets most of the power consumption scenarios. We match most of the inverter models on the market and have excellent compatibility.

Our warranty is up to 5 years and the product life is more than 10 years.


Product Detail

Detailed Diagram

Product Tags

Product Feature

1. Single module, four specifications: 100ah:48V/51.2V 200ah:48V/51.2V

2. Up to 15 modules can be connected to 153.6 KWH

3. AAA quality Eve battery cell, excellent performance

4. >6000 Cycle Life,Product warranty 5 years, product life more than 10 years

5. The product can be used in extreme weather with the option of adding heating function

6. LiFePo4 battery is environmentally friendly,safe and durable

7. Intelligent Battery Management System(BMS) is the best system on the market One can improve battery safety

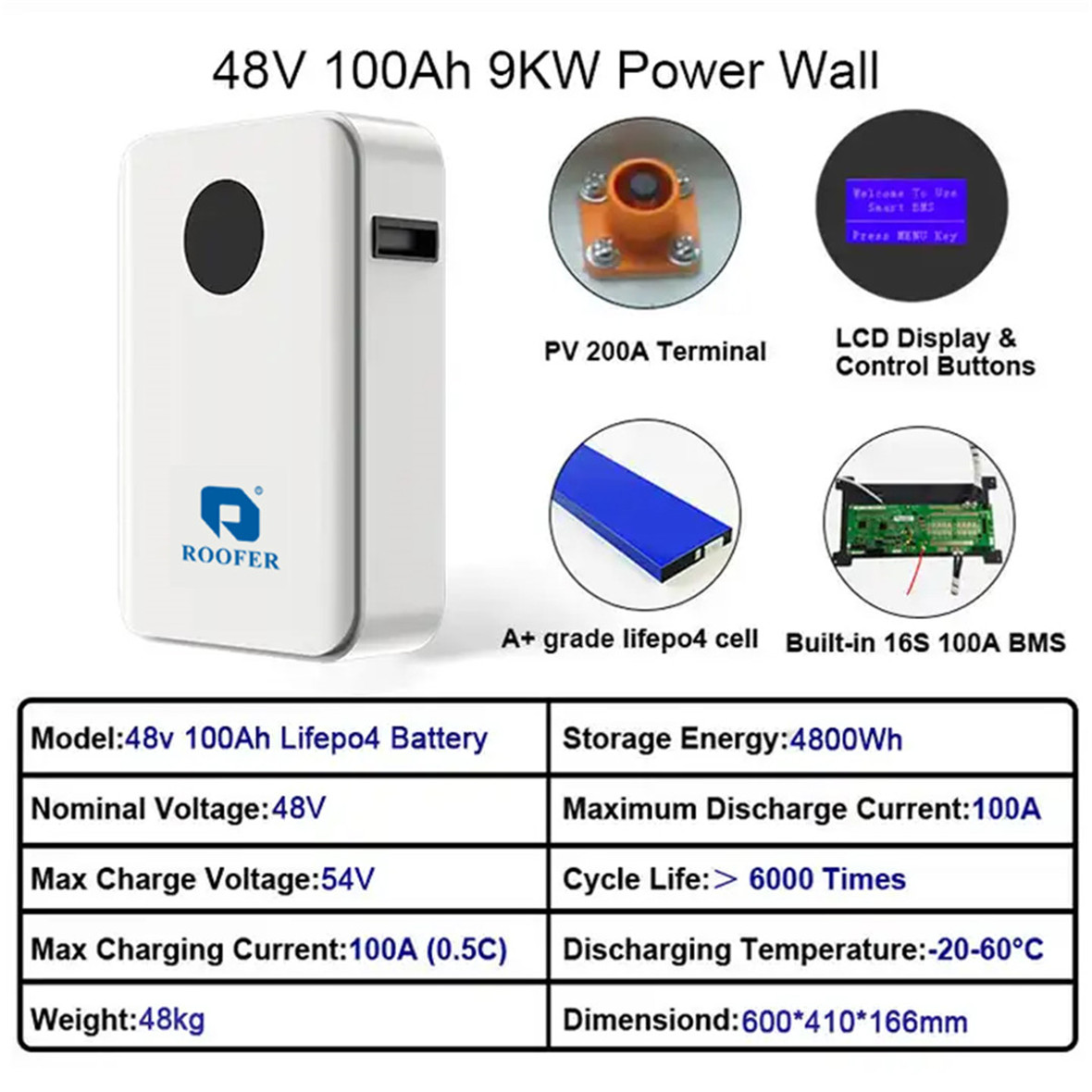

Parameter



48V 100AH

48V 200AH

51.2V 100AH

51.2V 200AH

Nominal Voltage

48V

48V

51.2V

51.2V

Nominal Capacity

100Ah

200Ah

100Ah

200Ah

Nominal Capacity

5KWh

10KWh

5KWh

10KWh

Charge Voltage

54V

54V

57.6V

57.6V

Charge Current

30A(Recommend )

Max Charge Current

50A

Charging Mode

Constant Current / Constant Voltage

Discharge Cut-off Voltage 43.5V 43.5V 46.4V 46.4V
Discharge Current

50A(Recommended)

Max Discharge Current

100A

Charge Temperature

0℃ to 55℃, 32°F to 131°F

Discharge Temperature

-20℃ to 60℃, -4°F to 140°F

Storage Temperature

0℃ to 40℃, 32°F to 104°F

Cycle Life

≥6000 Cycles @0.3C/0.3C

Commnication Port

RS485/CAN

Battery size(L)*(W)*(H) 600*410*166mm 700*450*266mm 600*410*166mm 700*450*266mm
Weight 48kg 82kg 50kg 85kg
Shell Material

Sheet metal chassis

Protection Class

IP55

Installation Method

Wall mounted

Certificate

UN38.3/MSDS/CE

Accepatable

OEM/ODM,Trade,Wholesale,Regional Agency

MOQ

1/piece
