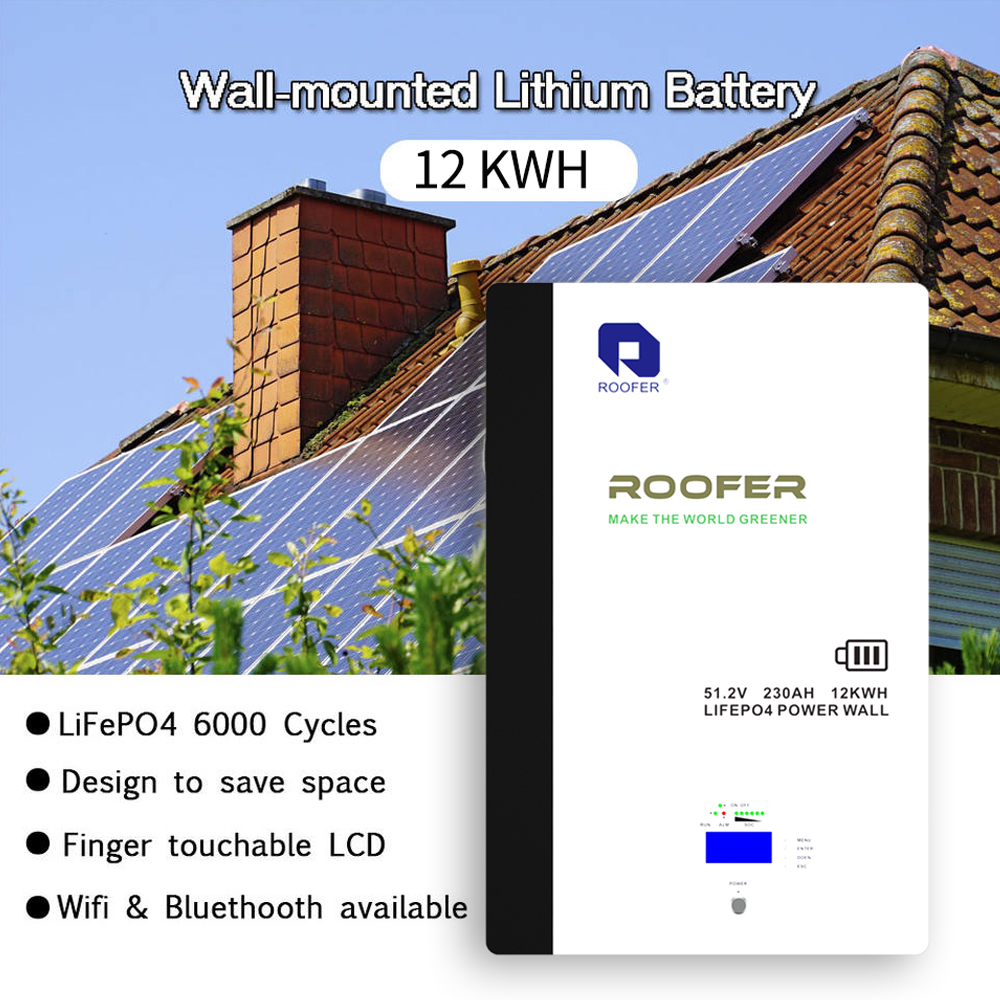

Wall Mount Residential Energy Storage Battery |51.2V|230Ah 12KWh

Short Description:

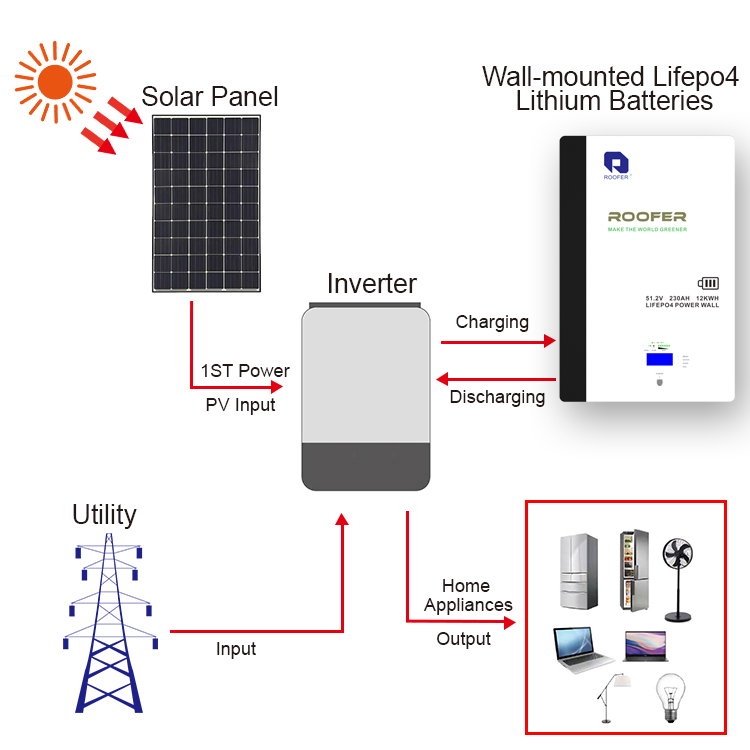

This product is mainly used for the storage of electricity in the home energy system. Can provide you with a complete set of home energy system construction.

This product is very easy to install and can be installed on the walls inside and outside the home according to our instructions, without taking up space in the home.

This product can reach up to 153.6kwh of electricity in parallel, which meets most of the power consumption scenarios. We match most of the inverter models on the market and have excellent compatibility.

Our warranty is up to 5 years and the product life is more than 10 years.

Send email to us

Product Detail

Detailed Diagram

Product Tags

Product Feature

1. Single module, four specifications: 100ah:48V/51.2V 200ah:48V/51.2V

2. Up to 15 modules can be connected to 153.6 KWH

3. AAA quality Eve battery cell, excellent performance

4. >6000 Cycle Life，Product warranty 5 years, product life more than 10 years

5. The product can be used in extreme weather with the option of adding heating function

6. LiFePo4 battery is environmentally friendly，safe and durable

7. Intelligent Battery Management System(BMS) is the best system on the market One can improve battery safety

Parameter

	48V 100AH	48V 200AH	51.2V 100AH	51.2V 200AH
Nominal Voltage	48V	48V	51.2V	51.2V
Nominal Capacity	100Ah	200Ah	100Ah	200Ah
Nominal Capacity	5KWh	10KWh	5KWh	10KWh
Charge Voltage	54V	54V	57.6V	57.6V
Charge Current	30A（Recommend ）
Max Charge Current	50A
Charging Mode	Constant Current / Constant Voltage
Discharge Cut-off Voltage	43.5V	43.5V	46.4V	46.4V
Discharge Current	50A（Recommended）
Max Discharge Current	100A
Charge Temperature	0℃ to 55℃, 32°F to 131°F
Discharge Temperature	-20℃ to 60℃, -4°F to 140°F
Storage Temperature	0℃ to 40℃, 32°F to 104°F
Cycle Life	≥6000 Cycles @0.3C/0.3C
Commnication Port	RS485/CAN
Battery size(L)(W)(H)	600410166mm	700450266mm	600410166mm	700450266mm
Weight	48kg	82kg	50kg	85kg
Shell Material	Sheet metal chassis
Protection Class	IP55
Installation Method	Wall mounted
Certificate	UN38.3/MSDS/CE
Accepatable	OEM/ODM,Trade,Wholesale,Regional Agency
MOQ	1/piece
